SOLID

Quick recap

Complexity, and where it comes from
Refactoring, and the smells that prompt it
Testability as a property of the design

Four scales, one question

Design is the same question asked at four sizes. The answer changes at every rung.

Scale	Unit	Where	The question
Code	a function	3 – 6	can a reader follow this?
Class	one class	here	what makes it change?
Component	a group of classes	19-20	which way do the dependencies point?
System	the whole thing	21	what is inside the boundary?

Lectures 3 to 6 worked the bottom rung: complexity, refactoring, smells. All of it inside a function.

SOLID is the next rung up. Not better rules — the same concern, one size larger.

What a design principle is

Not a rule, not a pattern, not a library. A design principle is an abstract claim about structure that holds across languages and platforms.

Patterns tell you what to build. Principles tell you why one arrangement is worse than another.

Four ways a design rots

Before the principles, the symptoms they exist to answer.

	Symptom	What it feels like
Rigidity	hard to change, even simply	one change cascades into dependent modules
Fragility	breaks in many places when changed	you fix here, it breaks somewhere unrelated
Immobility	cannot reuse a part elsewhere	the piece you want drags the whole system with it
Viscosity	the hack is easier than the fix	it is easy to do the wrong thing and hard to do the right thing

Viscosity is the one that decides the other three. A design where the correct change is harder than the shortcut will get shortcuts, every time, from everybody.

The five

	Principle	One line
S	Single Responsibility	one class, one reason to change
O	Open/Closed	open for extension, closed for modification
L	Liskov Substitution	a subclass must be usable as its base class
I	Interface Segregation	many small interfaces beat one large one
D	Dependency Inversion	both sides depend on an abstraction

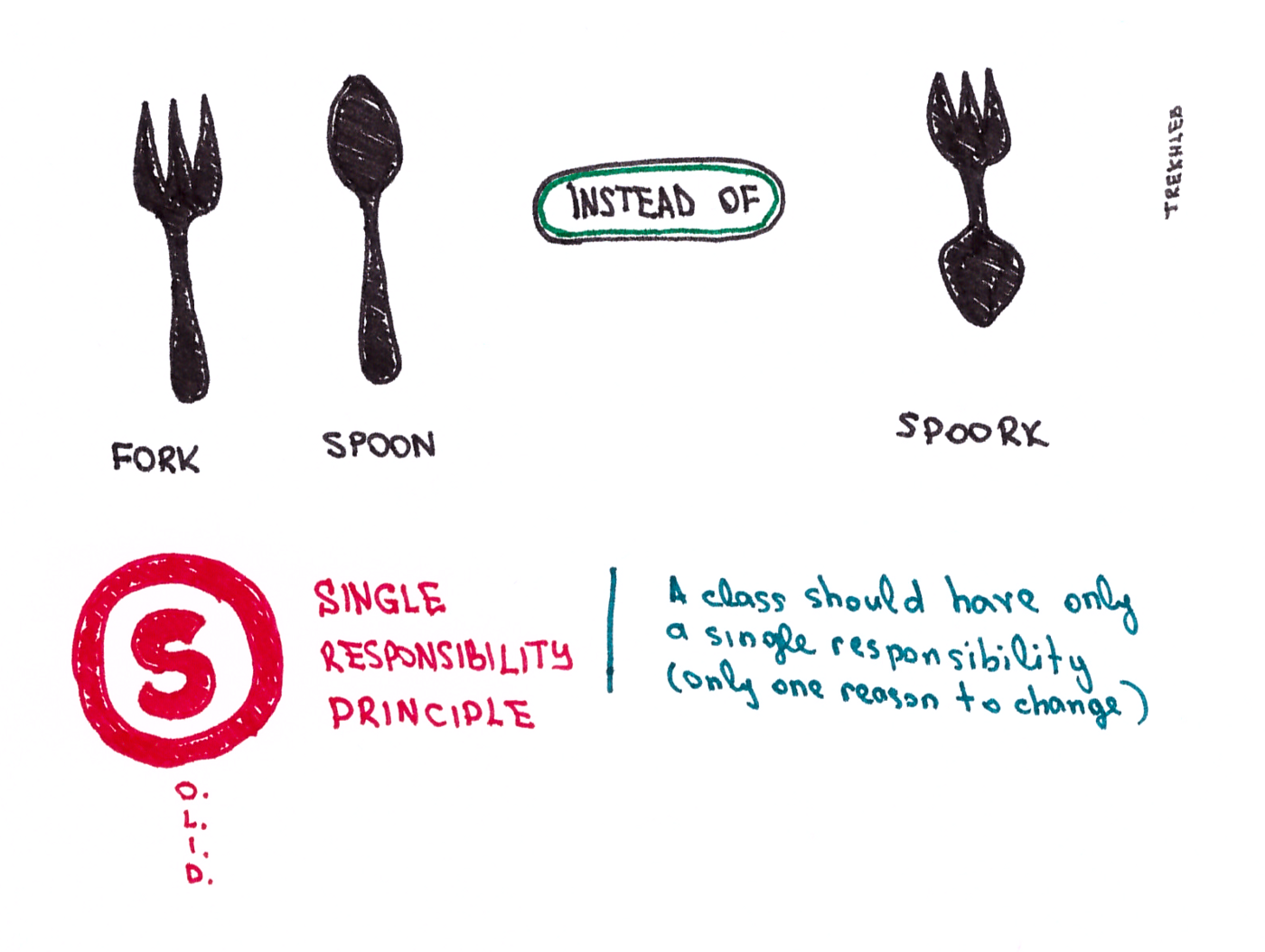

1. Single Responsibility

A class should have one, and only one, reason to change.

The violation

class Journal:
    def __init__(self):
        self.items = []

    def add_entry(self, entry):
        self.items.append(entry)

    def __str__(self):
        return "\n".join(self.items)

    # a second responsibility, bolted on
    def save(self, filename):
        with open(filename, "w+") as fp:
            fp.write(str(self))

    def load(self, filename):
        ...

Journal now has two reasons to change: the rules of journalling, and the mechanics of storage. Move to a database and a class about diary entries has to be edited.

The fix

class Journal:
    def __init__(self):
        self.items = []

    def add_entry(self, entry):
        self.items.append(entry)

    def __str__(self):
        return "\n".join(self.items)


class PersistenceManager:
    @staticmethod
    def save(journal, filename):
        with open(filename, "w+") as fp:
            fp.write(str(journal))

    @staticmethod
    def load(filename):
        journal = Journal()
        with open(filename) as fp:
            for line in fp:
                journal.add_entry(line.strip())
        return journal

Nothing was deleted. The same two jobs exist — they now live in two places, and each has one reason to change.

💬 Is __str__ a second responsibility?

Journal still formats itself into text. That is arguably presentation, not journalling. Should it move out too?

Answer

No — and the reason matters more than the answer.

A responsibility is a reason to change, not a category of work. Ask who would ask for the change:

the format of a diary entry changes → whoever owns journalling
the storage medium changes → whoever owns infrastructure

Those are different people. __str__ and add_entry answer to the same one.

SRP is not "one class, one method". It is one class, one audience. Split on every category of work and you get a hundred classes that must all change together, which is the same disease with more files.

SRP in a real code base

faculty_service.py#L98-L139 — forty lines, three audiences:

def search_faculty_db(query, error_on_empty=True):
    retriever = PostgresFullTextRetriever()          # retrieval
    records   = retriever.retrieve_faculty(query, limit=10)

    if not records:
        return ("I couldn't find any faculty or staff members "   # user-facing copy
                f"matching **'{query}'** in our records.\n\n")

    out = [f"### Search Results for '{query}'", ...]            # Markdown formatting
    for i, rec in enumerate(records, 1):
        out.append(f"#### {i}. {rec.get('name')} …")
    return "\n".join(out)

Swap the search backend, reword an error, restyle the output — three different people asking for three different things, all editing the same function.

The split

NOT_FOUND = ("I couldn't find any faculty or staff members matching "
             "**'{query}'** in our records.\n\n…")


def search_faculty(query: str, retriever) -> list[dict]:
    return retriever.retrieve_faculty(query, limit=10)


def format_faculty_results(query: str, records: list[dict]) -> str:
    out = [f"### Search Results for '{query}'",
           f"Found {len(records)} record(s):", ""]
    for i, rec in enumerate(records, 1):
        out.append(f"#### {i}. {rec.get('name')} ({rec.get('faculty_type')} Faculty)")
        ...
    return "\n".join(out)


def search_faculty_db(query, error_on_empty=True, retriever=None):   # composition only
    records = search_faculty(query, retriever or PostgresFullTextRetriever())
    if not records:
        return NOT_FOUND.format(query=query) if error_on_empty else None
    return format_faculty_results(query, records)

Change	Before	After
swap search backend	`search_faculty_db`	`search_faculty`
reword the error	`search_faculty_db`	`NOT_FOUND`
restyle output	`search_faculty_db`	`format_faculty_results`

format_faculty_results is now pure — list in, string out. Three dicts and no database test it. Nothing in that file could be tested that way before.

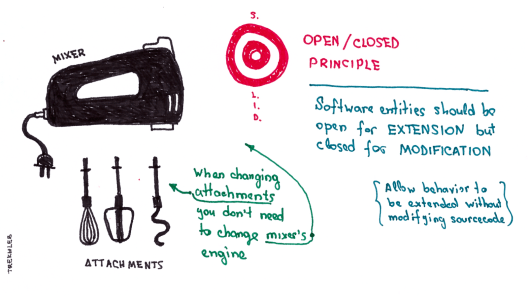

2. Open/Closed

A module should be open for extension but closed for modification.

The violation

class ProductFilter:
    def filter_by_color(self, products, color):
        for p in products:
            if p.color == color: yield p

    def filter_by_size(self, products, size):
        for p in products:
            if p.size == size: yield p

    def filter_by_size_and_color(self, products, size, color):
        for p in products:
            if p.color == color and p.size == size: yield p

Count the methods as criteria are added:

Criteria	Methods needed
2 — colour, size	3
3 — + weight	7
4	15

Every new criterion means editing a class that already worked. The combinations grow as 2ⁿ − 1.

The fix

class Specification(ABC):
    @abstractmethod
    def is_satisfied(self, item) -> bool: ...

    def __and__(self, other):
        return AndSpecification(self, other)


class ColorSpecification(Specification):
    def __init__(self, color): self.color = color
    def is_satisfied(self, item): return item.color == self.color


class SizeSpecification(Specification):
    def __init__(self, size): self.size = size
    def is_satisfied(self, item): return item.size == self.size


class AndSpecification(Specification):
    def __init__(self, *args): self.args = args
    def is_satisfied(self, item):
        return all(spec.is_satisfied(item) for spec in self.args)


class BetterFilter:
    def filter(self, items, spec: Specification):      # <- the whole contract
        for item in items:
            if spec.is_satisfied(item): yield item

large_green = SizeSpecification(Size.LARGE) & ColorSpecification(Color.GREEN)
for p in BetterFilter().filter(products, large_green):
    print(p.name)

A new criterion is a new class. BetterFilter is never opened again.

`spec: Specification` is not decoration

Leave the parameter untyped and BetterFilter depends on nothing in particular — it just hopes whatever arrives has an is_satisfied. The abstraction that makes this work is then nowhere in the code.

Make Specification abstract and a half-written criterion dies at construction, not silently at filter time:

class WeightSpecification(Specification):    # forgot is_satisfied
    def __init__(self, kg): self.kg = kg

WeightSpecification(5)

TypeError: Can't instantiate abstract class WeightSpecification
           without an implementation for abstract method 'is_satisfied'

Without ABC, that class instantiates fine, is_satisfied returns None, None is falsy, and the filter quietly returns nothing at all. No error, no results, no clue.

Open for extension means there is a named thing to extend. The abstract base is the extension point.

OCP in a real code base

fallback.py#L289-L303 — one if and five elifs, nested six levels deep inside a handler:

dl = (s_desig or "").lower()
if   "it" in dl or "system" in dl or "network" in dl:  desc = "…campus IT infrastructure…"
elif "account" in dl or "finance" in dl:               desc = "…financial audits…"
elif "library" in dl or "resource" in dl:              desc = "…library books…"
elif "placement" in dl or "career" in dl:              desc = "…corporate recruitment…"
elif "hostel" in dl or "warden" in dl:                 desc = "…student housing…"
elif "lab" in dl or "laboratory" in dl:                desc = "…"

A new department means editing a function that already works.

The table

DESIGNATION_BLURBS = [
    (("it", "system", "network"),          "managing the campus IT infrastructure…"),
    (("account", "finance", "audit"),      "managing financial audits, accounts…"),
    (("library", "resource", "librarian"), "managing library books, journals…"),
    (("placement", "career"),              "coordinating corporate recruitment…"),
    (("hostel", "warden", "residential"),  "managing campus student housing…"),
    (("lab", "laboratory", "workshop"),    "…"),
]


def describe_designation(designation: str) -> str:
    dl = (designation or "").lower()
    for keywords, blurb in DESIGNATION_BLURBS:
        if any(k in dl for k in keywords):
            return blurb
    return DEFAULT_BLURB

The call site becomes one line: desc = describe_designation(s_desig).

A new department is a new row, not an edit to logic. And describe_designation is a pure function at module level — where the original was reachable only by driving the entire fallback path.

This is OCP without inheritance. The extension point is a data table. Extension points do not have to be polymorphic — they have to be named and separate.

3. Liskov Substitution

Subclasses should be substitutable for their base classes.

A function that takes a rectangle

def stretch_to_height(rc: Rectangle, new_height: int):
    w = rc.width
    rc.height = new_height
    print(f"expected: {w * new_height}, got {rc.area}")

The name is the contract. Stretch one dimension — the other stays put. That is what a rectangle is.

class Square(Rectangle):
    def __init__(self, size):
        Rectangle.__init__(self, size, size)

    @Rectangle.height.setter
    def height(self, v):
        self._height = v
        self._width = v          # keeps the square square

What happens

stretch_to_height(Rectangle(2, 5), 10)    # expected: 20, got 20
stretch_to_height(Square(5), 10)          # expected: 50, got 100

Square never breaks its own invariant. It breaks a caller's.

A square is a rectangle in geometry and not in code, because in code a rectangle carries a promise that width and height move independently. Inheritance inherits the promises too.

The fix is not a cleverer Square. It is to stop claiming Square is a Rectangle.

💬 Who broke the contract?

Three candidates: Rectangle, Square, or stretch_to_height. Pick one.

Answer

Square — but only because Rectangle made a promise it then inherited.

stretch_to_height did nothing exotic. It relied on the base class's stated interface: independent mutable width and height. Any caller may.

Square accepted that interface and then violated it. A subclass may strengthen what it guarantees; it may never weaken what callers are allowed to assume.

Note what this rules out. If Rectangle were immutable — no setters, resize() returning a new instance — Square would substitute cleanly. The mutability created the contract that the subclass could break.

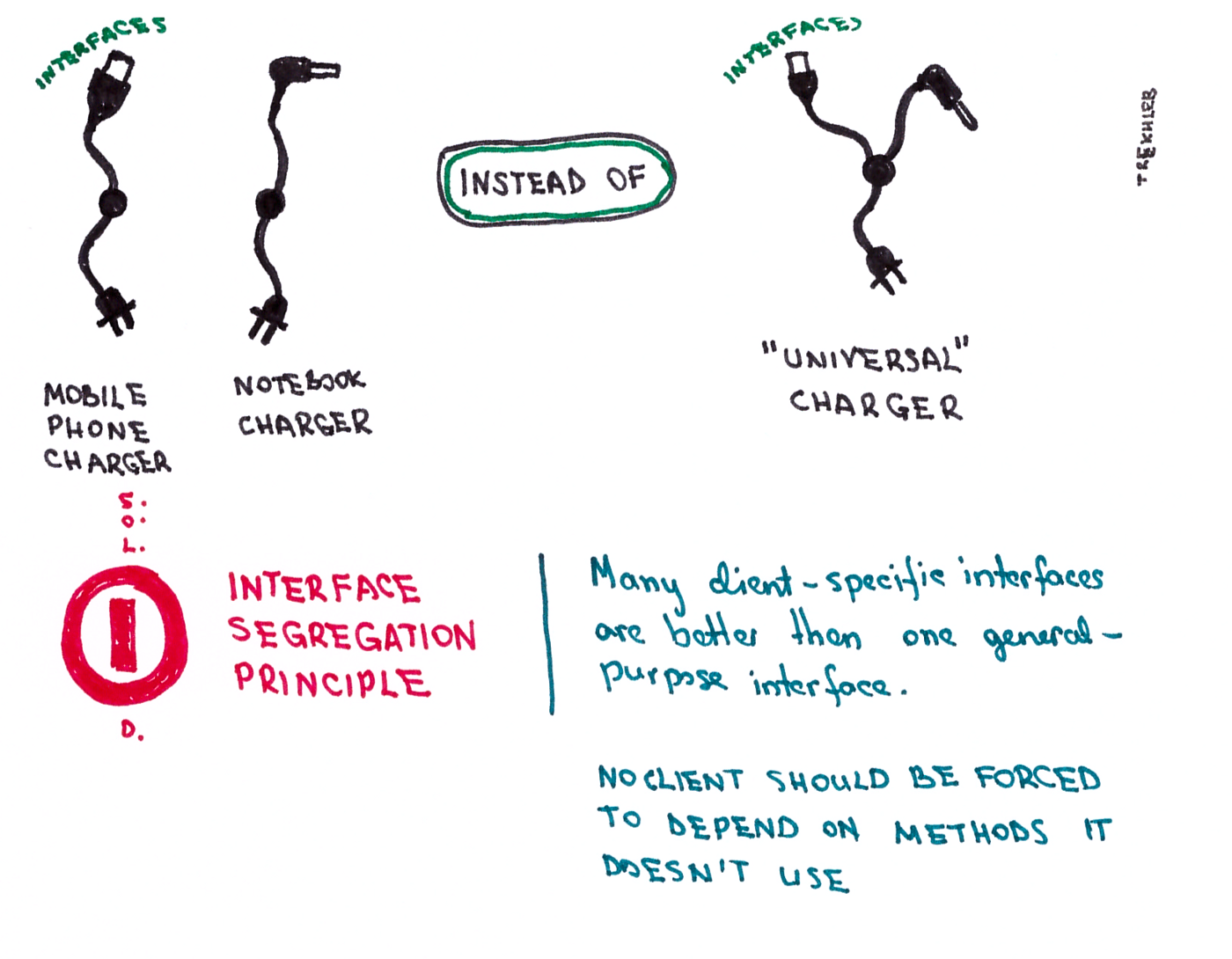

4. Interface Segregation

Many client-specific interfaces are better than one general-purpose interface.

The violation

class Machine:
    def print(self, document): raise NotImplementedError()
    def fax(self, document):   raise NotImplementedError()
    def scan(self, document):  raise NotImplementedError()


class OldFashionedPrinter(Machine):
    def print(self, document):
        pass                     # fine

    def fax(self, document):
        pass                     # silently does nothing

    def scan(self, document):
        raise NotImplementedError('Printer cannot scan!')

Two bad options and no good one. fax lies quietly; scan explodes at run time. Both happen because the interface promised things this device cannot do.

The fix

class Printer:
    @abstractmethod
    def print(self, document): ...


class Scanner:
    @abstractmethod
    def scan(self, document): ...


class MyPrinter(Printer):
    def print(self, document): print(document)


class Photocopier(Printer, Scanner):
    def print(self, document): print(document)
    def scan(self, document):  ...

A class should not be forced to depend on methods it does not use. A printer that cannot scan should be unable to say scan, not forced to fail when asked.

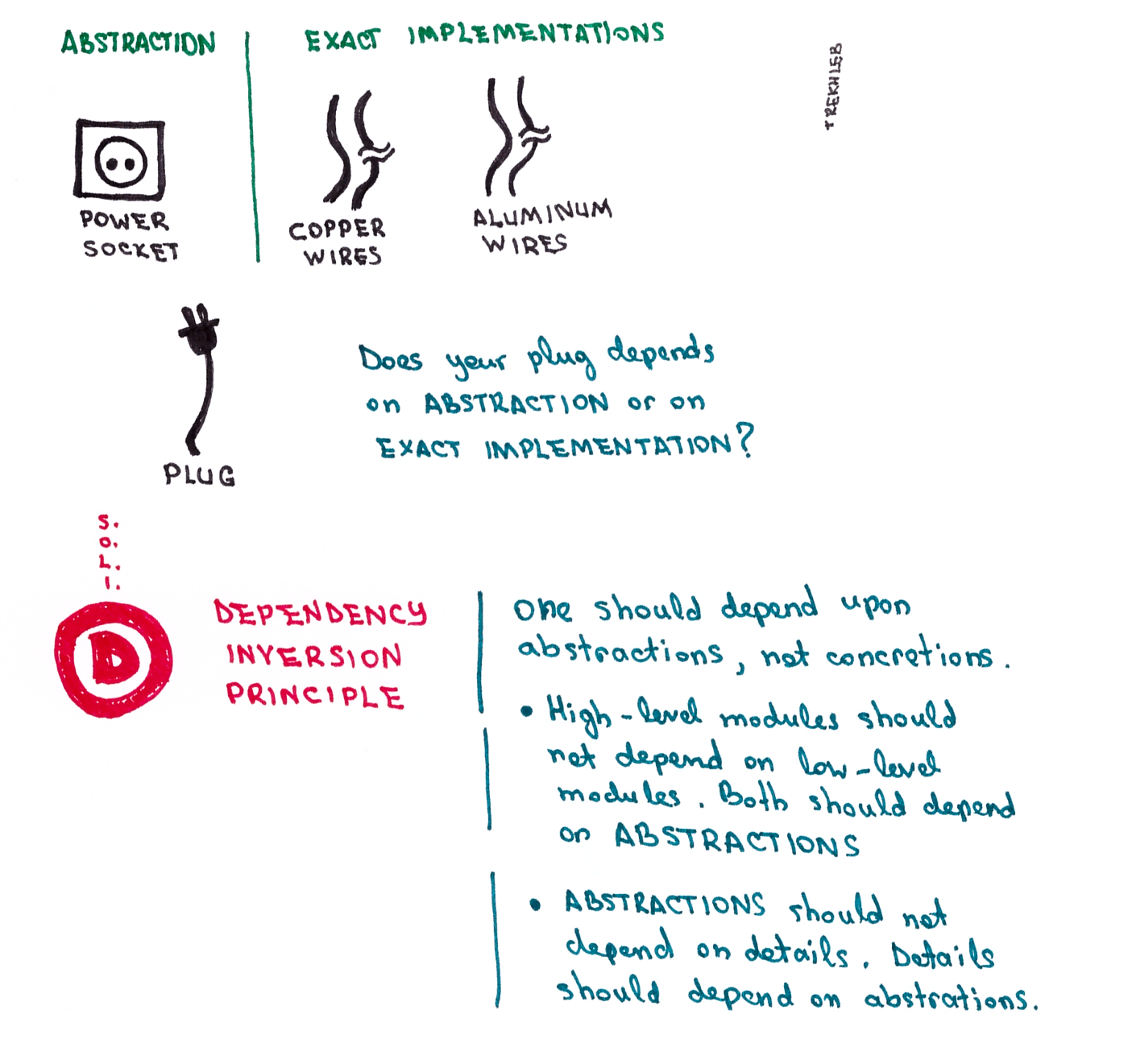

5. Dependency Inversion

High-level modules should not depend on low-level modules. Both should depend on abstractions.

Abstractions should not depend on details. Details should depend on abstractions.

Not the same thing as dependency injection. Inversion is about which way the arrow points; injection is one way to arrange it.

The abstraction first

class Logger(ABC):
    @abstractmethod
    def log(self, message: str): ...


class ConsoleLogger(Logger):
    def log(self, message): print(f"[Console] {message}")


class FileLogger(Logger):
    def __init__(self, filepath): self.filepath = filepath
    def log(self, message):
        with open(self.filepath, 'a') as f:
            f.write(f"[File] {message}\n")


class RemoteLogger(Logger):
    def log(self, message): print(f"[Remote] {message}")

class App:                       # the high-level module
    def __init__(self, logger: Logger):
        self.logger = logger

    def run(self):
        self.logger.log("Application started")

Which way the arrow points

Without the abstraction, App names FileLogger and the arrow runs downward — policy depending on detail. Change the log destination and App is edited.

With it, both sides point at Logger. App depends on an idea; FileLogger depends on the same idea. Neither knows the other exists.

The detail became the plug-in and the policy became the socket. That is the inversion.

💬 Which principle does each of these break?

	Symptom
a	Adding a payment method means editing `Checkout`
b	`NullCustomer.email()` raises, and every caller now needs a guard
c	A class that parses CSV, validates rows, and writes to Postgres
d	`Report` constructs `PostgresConnection` in its constructor

Answer

	Principle
a	Open/Closed	extension forces modification
b	Liskov	the subclass weakened what callers could assume
c	Single Responsibility	three reasons to change
d	Dependency Inversion	policy names a detail

Notice that (b) and (d) would both be caught by trying to write a test. You cannot substitute a NullCustomer safely, and you cannot substitute the database at all.

That is not a coincidence. These principles were written decades before anyone used a test to find them — the test is just the cheapest way to notice.

DIP in a real code base

The abstraction already exists — retrieval.py#L15-L26:

class BaseRetriever(ABC):
    """Abstract interface for retrieving records from the database."""

    @abstractmethod
    def retrieve_faculty(self, query: str, limit: int = 5) -> List[Dict[str, Any]]: ...

    @abstractmethod
    def retrieve_staff(self, query: str, limit: int = 5) -> List[Dict[str, Any]]: ...

And it is bypassed, in two places:

faculty_service.py:101    retriever = PostgresFullTextRetriever()
staff_service.py:100      retriever = PostgresFullTextRetriever()

The socket was built and then nobody plugged into it.

The receipt

Three tests pay for it — test_fuzzy_directory_search.py#L226:

with patch("api.services.faculty_service.PostgresFullTextRetriever") as mock_retriever:

That string encodes which module imports which class. Move the import and three tests break with no behaviour changed.

The fix is one parameter

def search_faculty_db(query: str,
                      error_on_empty: bool = True,
                      retriever: BaseRetriever | None = None) -> Optional[str]:
    retriever = retriever or PostgresFullTextRetriever()
    records = retriever.retrieve_faculty(query, limit=10)

Every existing call site keeps working. The test loses the module path:

search_faculty_db("machine learning", retriever=FakeRetriever([{"name": "Ada"}]))

The module still imports the concrete class for its default. That is a compromise, not a purity failure — it costs no call sites and it creates the place where the decision can move.

Which two you have already used

Of the five, two do most of the work in practice:

SRP, because a class with one reason to change is a class you can hold in your head
DIP, because it is the only one that decides whether a thing can be substituted at all

L and I are narrower: they fire on inheritance hierarchies and on wide interfaces, and a codebase can go years without either.

Learn all five. Expect to reach for two.

You have been using all five

The principles are not academic. The people who designed your language applied them, and you have been consuming the result since your first for loop.

Open/Closed — one method, and everything already written works

class Bag:
    def __init__(self, items): self._items = items
    def __iter__(self):        return iter(self._items)

b = Bag([3, 1, 2])

list(b)        # [3, 1, 2]
sorted(b)      # [1, 2, 3]
min(b), max(b) # 1 3
sum(b)         # 6
3 in b         # True
x, y, z = Bag([1, 2, 3])

sorted, min, sum, in, unpacking, every comprehension and every for loop — extended, none modified. Not one of them knows Bag exists.

Every one of those was written before Bag existed, and none of them changed.

Liskov — the language refuses to let you break it

class Point:
    def __init__(self, x, y): self.x, self.y = x, y
    def __eq__(self, other):  return (self.x, self.y) == (other.x, other.y)

>>> Point.__hash__
None
>>> {Point(1, 2)}
TypeError: unhashable type: 'Point'

The contract says equal objects hash equally. You redefined equality and said nothing about hashing, so Python broke your class on purpose rather than let it corrupt every set and dict it touches.

In C++ the same mistake is quieter and worse: an operator< that is not a strict weak ordering makes std::sort undefined behaviour, not merely a wrong order.

Interface Segregation — by deliberate design

collections.abc is a hierarchy of one-method interfaces:

ABC	Requires
`Sized`	`__len__`
`Iterable`	`__iter__`
`Container`	`__contains__`
`Hashable`	`__hash__`

They were not split by accident. A type implements only the protocols it can honour, and a class that can be iterated but not measured says exactly that.

Dependency Inversion is in the same place: len(x) does not depend on x's class. It depends on __len__, and so does x. Both sides point at the protocol.

So which is it?

The previous slide said you will reach for SRP and DIP. This one shows L and I everywhere. Both are true, and the difference is which side of the interface you are standing on.


Authoring a class or a module	SRP and DIP are the ones you apply
Conforming to an interface you did not write	L and I are the ones you obey

You break Liskov the day you implement __eq__, operator<, or compareTo without reading what the caller was promised.

References:

Robert C. Martin, Design Principles and Design Patterns
SOLID — Wikipedia
SOLID Principles Around You
The Open-Closed Principle

SOLID

Quick recap

Four scales, one question

What a design principle is

Four ways a design rots

The five

1. Single Responsibility

The violation

The fix

SRP in a real code base

The split

2. Open/Closed

The violation

The fix

spec: Specification is not decoration

OCP in a real code base

The table

3. Liskov Substitution

A function that takes a rectangle

What happens

4. Interface Segregation

The violation

The fix

5. Dependency Inversion

The abstraction first

Which way the arrow points

DIP in a real code base

The receipt

The fix is one parameter

Which two you have already used

You have been using all five

Open/Closed — one method, and everything already written works

Liskov — the language refuses to let you break it

Interface Segregation — by deliberate design

So which is it?

References:

`spec: Specification` is not decoration
