Component principles

Quick recap

SOLID, at the level of one class
The data model, and claiming a protocol

The claim

A class is not a unit of delivery. You do not ship a class — you ship a component, and it has its own principles.

Six rules, and every one of them is about a line you cannot see in any source file: the boundary between what ships together and what ships apart.

Agenda

What a component is
Cohesion: REP, CCP, CRP — and the tension between them
Coupling: ADP, SDP, SAP
Measuring a real code base

What is a component

A modular, self-contained, independently deployable unit of software.

A physical artifact: a .jar, a .dll, a wheel, a packaged JS library
Standard interface, internals hidden, assembles with others
A folder is not a component. A thing you can version and release is.

The test: can you give someone this and nothing else, and can they use it?

Components are products

Calling it a deployment unit undersells it. A component is a unit of productisation, which means somebody owes its consumers:

versioning and release management
communication when something changes
stability, and support for the version they are on

That shifts the question from "can I share this code?" to "am I prepared to maintain this for other people?"

What a good one looks like


Reusable	works in more than one context without modification
Encapsulated	internals hidden, only stable interfaces exposed
Independent	few dependencies, so it can be built and deployed alone
Replaceable	swappable for another implementation that honours the interface

Cohesion and coupling

The two forces, at every level of design.

Cohesion — how well the things inside belong together
Coupling — how much one component depends on another

Maximise the first, minimise the second. And note the relationship: high cohesion tends to produce loose coupling on its own, because a component that owns one job has less to ask of anyone else.

Cohesion is a spectrum

Type	Grouped by	Example
Coincidental (worst)	nothing	`CommonUtilities`
Logical	same category, unrelated work	`InputHandler` for keyboard, mouse, network
Temporal	happens at the same time	shutdown routines
Procedural	execution order	`AppInitializer`: check licence, load prefs, connect
Communicational	the same data	`CustomerManager`: address update, order history
Sequential	output feeds the next	`ReportGenerator`: fetch → aggregate → format
Functional (best)	one task	`PaymentProcessor`: validate, authorize, capture

utils is not a name. It is an admission that no one could think of one.

Coupling is also a spectrum

Type	What crosses the boundary	Example
Content (worst)	reaching into internals	modifying another component's variable
Common	shared global state	a global `Configuration`
External	a specific technology	Oracle-specific SQL
Control	a flag that steers logic	`sort(data, directionFlag)`
Stamp	a whole object, partly used	`Mailer(User)` needing only email and name
Data (best)	primitives	`TaxCalculator(price, region)`

Cohesion: which classes belong together

Three principles, and they pull against each other.

REP — Reuse/Release Equivalence

The granule of reuse is the granule of release.

The smallest thing someone can reuse must be the smallest thing you release and track.

Copy-paste is not reuse. Copies diverge; your bug fix never reaches them. Reuse means depending on a versioned artifact, which implies semantic versioning, release notes, and somebody telling consumers what changed.

implementation 'org.springframework:spring-core:5.3.23'     # Maven
"react": "^18.2.0"                                          # npm
pod 'Alamofire', '~> 5.6'                                   # CocoaPods

Every package manager you have used is REP, enforced by tooling.

CCP — Common Closure

Gather into a component the classes that change for the same reasons, at the same times. Separate those that do not.

This is the Single Responsibility Principle, one level up: a component should have one reason to change.

What it buys:

a change for one requirement stays inside one component
only that component is rebuilt, retested, redeployed

CRP — Common Reuse

The classes in a component are reused together. If you reuse one, you reuse them all.

The other side: do not force consumers to depend on things they do not use. This is Interface Segregation at the component level — ISP warns against fat interfaces, CRP warns against fat components.

Two costs when you get it wrong:

Dependency bloat. A consumer who needs one class inherits the component's entire dependency tree — bigger builds, more version conflicts.
Release churn. Mix a volatile class with stable ones and every consumer gets a new release, and has to re-validate, for a change they do not use.

They pull against each other

CCP says group more — keep things that change together in one place
CRP says group less — do not make me depend on what I do not use
REP sits between them, and says whatever you decide must be releasable

There is no arrangement that maximises all three.

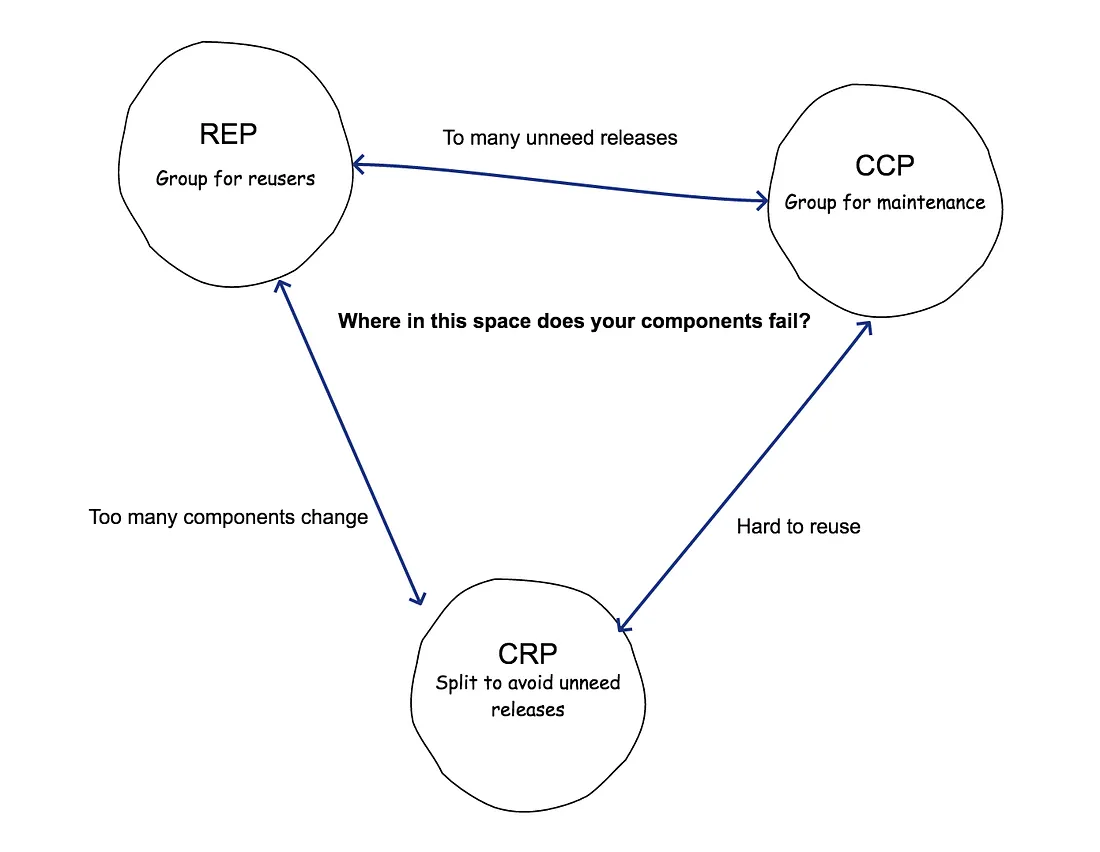

The tension diagram

Each edge is the price of giving up the principle at the opposite corner:

You sit on this edge	You abandoned	And you get
REP — CCP	CRP	too many unneeded releases
REP — CRP	CCP	too many components change at once
CCP — CRP	REP	components nobody can reuse

You are always somewhere inside this triangle. The question is not how to escape it but which of the three failures you can currently afford.

Early in a project, CCP wins: easy change matters more than troubling consumers you do not have yet. As a component matures and gains consumers, the balance shifts toward CRP.

Where in this space do your components fail?

Coupling: which way the dependencies point

ADP — Acyclic Dependencies: the problem

Friday: working code. Monday: broken build. You changed nothing.

Someone edited a component you depend on.

The morning-after syndrome. On a big team, nobody works on what they planned to.

First attempt: integrate on Fridays

Develop in isolation all week. Integrate Friday.

It works — four quiet days, one noisy one.

Then the project grows:

Changes to reconcile	Friday takes
a handful	an hour
dozens	all day
too many	Saturday too

The trap

Friday hurts → integrate fortnightly → bigger batches → hurts more → integrate monthly.

The fix accelerates the problem it was introduced to solve.

Wrong question: how often do we integrate? Right question: why is integrating expensive?

Because you are integrating source

Everyone's latest code, all at once, whether you wanted it or not.

Integrate released components instead:

a team ships a component with a version number
others keep the version they have
they upgrade when they choose

No team is at the mercy of another.

Requires one thing: no cycles.

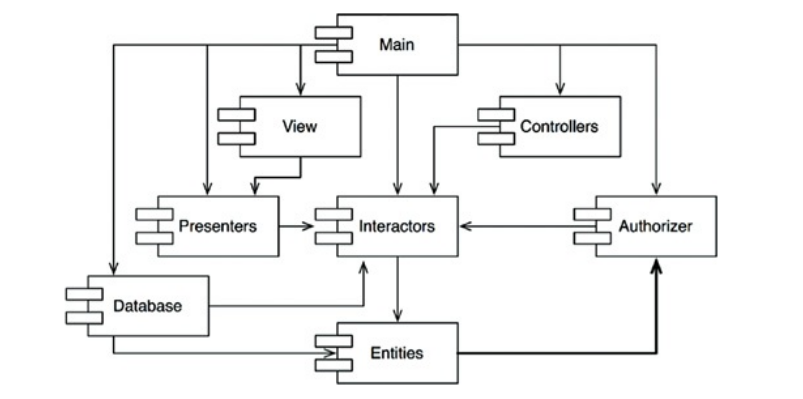

Cycles

A cycle means the components "have, in effect, become one large component."

they cannot be released independently
they cannot be unit tested in isolation
there may be no correct build order at all

Two ways out

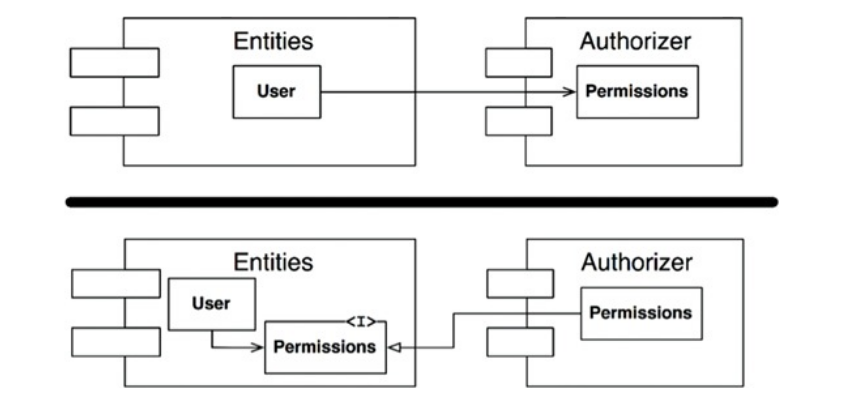

1. Invert one dependency. Put an interface in the lower-level component that the higher-level one depends on.

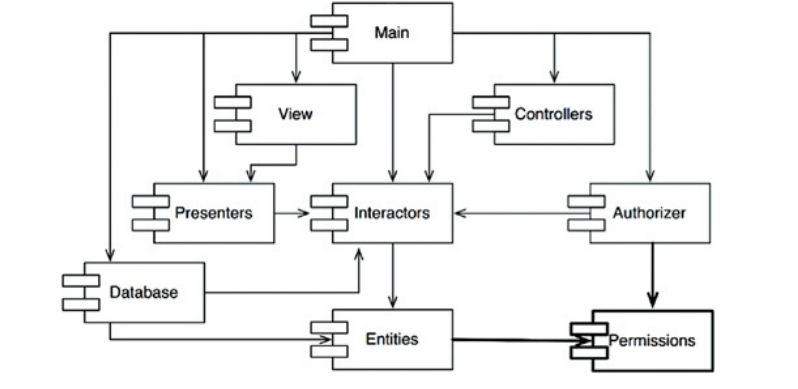

2. Extract a new component. Move what both need into a third thing they both depend on.

SDP — Stable Dependencies

Depend in the direction of stability.

"Stable" here does not mean good or unchanging by nature. It means hard to change, because many things depend on you.

	Unstable	Stable
Incoming dependencies	few	many
Outgoing dependencies	many	few
Changing it	easy, nothing breaks	expensive, everything breaks
Martin's phrasing	"irresponsible and dependent"	"responsible and independent"

Examples

Stable — many depend on it	Unstable — it depends on many
the standard library	`main()` / the entry point
a logging interface	a UI screen
core entities: `Order`, `Customer`	a report generator
a shared `Money` or `Date` type	a one-off migration script
a database schema several services read	the test suite

Stability is about position in the dependency graph, not code quality. A stable component can be badly written. An unstable one can be excellent.

The instability metric


Fan-in	classes outside that depend on this component
Fan-out	classes inside that depend on something outside
I	`fan-out ÷ (fan-in + fan-out)`, range 0 to 1

I = 0 — maximally stable. Everyone depends on it, it depends on nobody
I = 1 — maximally unstable. Nobody depends on it, it depends on everyone

The rule: I should decrease in the direction of dependency. A component must depend only on components more stable than itself.

Violation: a core DatabaseLayer depending on a volatile UI. Change the UI and the database code rebuilds.

SAP — Stable Abstractions

A component should be as abstract as it is stable.

If a component is hard to change, it had better be extendable instead. That means abstract classes and interfaces — extended without being modified.


A	`abstract classes and interfaces ÷ total classes`
A = 0	entirely concrete
A = 1	entirely abstract

Together, SDP and SAP are the Dependency Inversion Principle at component scale: dependencies run in the direction of abstraction. The difference from the class-level version is that a component can be partly abstract and partly stable.

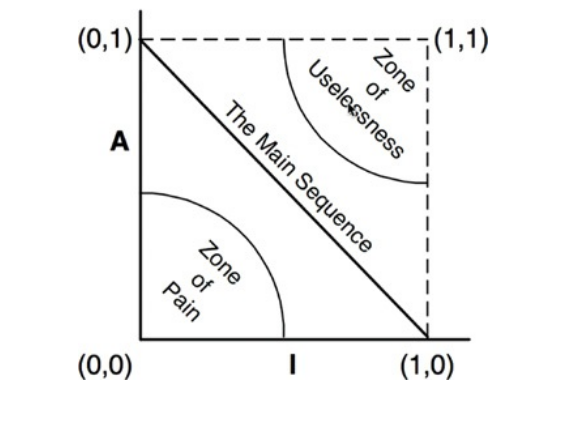

The main sequence, and two places not to be

A component should sit near the line A + I = 1. Distance from it: D = |A + I − 1|.

Zone	Where	Why it hurts
Zone of Pain	`A≈0, I≈0` — concrete and stable	rigid: cannot extend it, cannot change it
Zone of Uselessness	`A≈1, I≈1` — abstract and unstable	abstractions nobody implemented

D finds candidates. It does not rank them — a concrete, stable component that nothing much depends on is a quiet afternoon's work, while the same score on something with nine dependents is not. Read D to find them, fan-in to rank them.

💬 Five components. Which one do you fix first?

Component	fan-in	fan-out	abstract classes	total classes
`domain`	8	0	0	10
`ui`	0	5	0	6
`interfaces`	6	0	5	5
`legacy_utils`	1	0	0	4
`plugins_api`	0	1	4	4

Compute I, A and D for each.
Which zone is each in?
Which one do you fix first, and why?

Answer

Component	I	A	D	Where
`domain`	0.00	0.00	1.00	Zone of Pain
`ui`	1.00	0.00	0.00	main sequence
`interfaces`	0.00	1.00	0.00	main sequence
`legacy_utils`	0.00	0.00	1.00	Zone of Pain
`plugins_api`	1.00	1.00	1.00	Zone of Uselessness

Three components score D = 1.00. They are not equally urgent.

domain first. Eight dependents, fully concrete. Cannot be extended, and every change reaches eight other components.
legacy_utils can wait. Same zone, but one dependent. Fixing it costs one conversation.
plugins_api is a different problem. Four abstract classes and nobody uses them. Not rigid — just unused. Delete or implement.

ui and interfaces are both on the main sequence, at opposite ends: one unstable and concrete, one stable and abstract. Both are correct.

D finds the candidates. Fan-in decides the order.

The six, in one place

	Principle	Says	Class-level twin
REP	Reuse/Release Equivalence	the unit of reuse is the unit of release	—
CCP	Common Closure	group what changes together	SRP
CRP	Common Reuse	do not force unused dependencies	ISP
ADP	Acyclic Dependencies	no cycles	—
SDP	Stable Dependencies	depend toward stability	—
SAP	Stable Abstractions	be as abstract as you are stable	DIP

The first three decide what goes inside a component. The last three decide how components point at each other.

References:

Chapters 13–14, Clean Architecture — Robert C. Martin
Component cohesion principles
The full-stack software design & architecture map
