Architecture: boundaries

Quick recap

SOLID — principles for one class
Component principles — what ships together, and which way components point

The question

Where does design end and architecture begin?

Hold that. It gets answered at the end.

Four scales

Scale	Unit	Asks
Code	a function	can a reader follow this?
Class	one class	what makes it change?
Component	a group of classes	which way do dependencies point?
System	the whole thing	what is inside the boundary?

This lecture is the top row.

Start with a small system

A snake game that remembers the high score.

class Game:
    def finish(self, score):
        best = json.load(open("score.json"))["best"]
        if score > best:
            json.dump({"best": score}, open("score.json", "w"))

Works. Ships. Now three change requests arrive.

Change request 1

"Store scores in a database, not a file."

What do you edit? Game.

Change request 2

"Show a leaderboard on a website."

What do you edit? Game — it is the only thing that knows where scores live.

Change request 3

"Let two players share one leaderboard over the network."

What do you edit? Game. Again.

Look at what changed

	Changes how often
the rule — a high score is saved only if beaten	almost never
where scores are stored	three times this term

The part that changes least is being edited for the parts that change most.

So which way should the dependency point?

The dependency rule

Source code dependencies point inward — toward the rules, never away from them.

The rules know nothing about files, databases, or websites. The file, database and website all know about the rules.

The rings

Ring	Contains	Changes
Entities	business rules — a high score is kept only if beaten	rarely
Use cases	application flow — finish a game, record the result	sometimes
Adapters	translate between rules and the outside	often
Frameworks & drivers	database, web server, UI toolkit	constantly

Dependencies cross rings inward only. Nothing inside names anything outside.

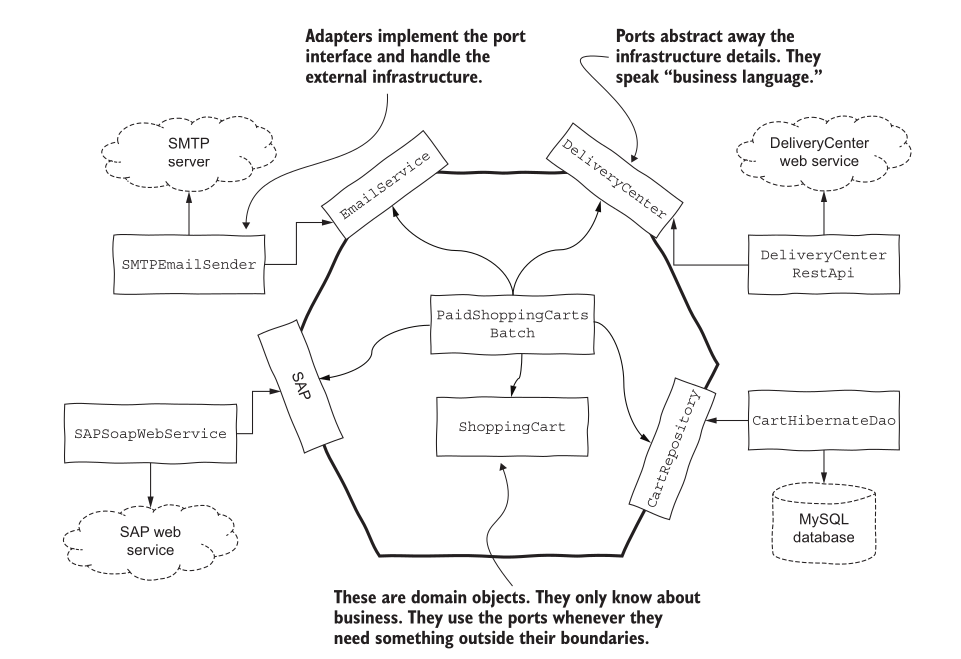

Ports and adapters

Port — an interface the core owns, describing what it needs
Adapter — an implementation outside, plugged into a port

The core states what it needs. It does not say who provides it.

The game, rebuilt

The core owns the rule and the port:

class ScoreStore(Protocol):          # the port
    def best(self) -> int: ...
    def save(self, score: int) -> None: ...


class Game:
    def __init__(self, store: ScoreStore):
        self._store = store

    def finish(self, score: int) -> bool:
        if score > self._store.best():
            self._store.save(score)
            return True
        return False

No json. No open. No filename.

Adapters, outside

class FileScoreStore:
    def __init__(self, path): self.path = path
    def best(self):
        return json.load(open(self.path))["best"] if os.path.exists(self.path) else 0
    def save(self, score):
        json.dump({"best": score}, open(self.path, "w"))


class InMemoryScoreStore:
    def __init__(self): self._best = 0
    def best(self): return self._best
    def save(self, score): self._best = score

Same Game, both stores, scores 40, 30, 55:

FileScoreStore      True  False  True   best=55
InMemoryScoreStore  True  False  True   best=55

The three change requests, again

Request	Before	Now
database instead of file	edit `Game`	write `PostgresScoreStore`
leaderboard website	edit `Game`	web adapter reads the same port
shared over network	edit `Game`	write `NetworkScoreStore`

Game is edited zero times.

What a boundary buys

A boundary lets you make a decision later.

Decision	Without a boundary	With one
which database	before writing game logic	when you have real data
which web framework	before the first screen	when you know what the screens are
file, cloud, or network	day one	whenever it actually matters

Good architecture maximises the number of decisions not yet made.

The rules can be written, run and tested before any of those decisions exist.

What a boundary costs

Not free:

one more interface to name and keep honest
one more file to read before you find the real code
indirection a newcomer has to trace

A 200-line script with one storage option does not need a port.

Draw a boundary where something on the other side is likely to change — not everywhere a boundary could be drawn.

💬 Which way does it point?

Each line is an import inside the file named on the left. Inward or outward?

File	Imports
a. `game.py`	`from storage.postgres import PostgresScoreStore`
b. `postgres_store.py`	`from game import ScoreStore`
c. `web/leaderboard.py`	`from game import Game`
d. `game.py`	`import flask`

Answer

	Direction	Verdict
a	rules → database	outward. Violation
b	database → rules	inward. Correct
c	web → rules	inward. Correct
d	rules → framework	outward. Violation

The test is one question: does the file with the rules name anything that changes more often than the rules do? If yes, the arrow points the wrong way.

💬 Where is the boundary in your snake game?

List every place your game touches the outside world: keyboard, screen, clock, random numbers, files.

For each one: does your game logic name it directly, or does it depend on something the core owns?

What to look for

Most snake games have no boundary at all. Game logic calls getch(), Sleep(), rand(), cout and ofstream directly.

That is not wrong for a first version. It means every one of those is a decision made on day one that cannot now be changed without editing the rules.

Pick the one most likely to change. That is where your first port goes.

Back to the question

Where does design end and architecture begin?

It doesn't. Same question, different scale.

Concern	Class	Component	System
one reason to change	SRP	CCP	a ring changes for one kind of reason
depend on abstractions	DIP	SAP	the dependency rule
don't force unused dependencies	ISP	CRP	ports expose only what the core needs

Architecture is design where the unit is the whole system and the cost of a wrong arrow is highest.

References:

Chapter 22, The Clean Architecture — Clean Architecture, Robert C. Martin
Hexagonal Architecture — Alistair Cockburn
